Giới thiệu Đầu Chia 8 Cổng Poe Cho Camera Cctv Ethernet Ieee802.3af

Description:

Features:
100% brand new and high quality.
• 4/8 LAN ports, 4/8 LAN and power ports
• Power VOIP phones, IP cameras, WiFi access points, and so on
• Same voltage to all ports, power is shared equally
• 2.1 x 5.5 mm for DC plug
• LED power light
• Works with any Ethernet switch or router
• Uses 48 V power adapter to output 48 V power supply
• Plastic case
• Network cable equipment to line standards:
Straight through 568B; (positive line, that is straight through line, standard 568B: the same end line order, from left to right line order: white orange. orange. white green. blue. white blue. green. white brown. brown)
• POE port: connection bridge AP CPE device WAN interface (used with POE separation line)
LAN port: connect to the router switch or directly connect to the host computer network interface
DC socket: external -5.5mm* inner +2.1mm
POE port = 4 5 pin positive 7 8 pin negative
1 2 3 6 feet data
LAN port = 1 2 3 6 pin data
Note: The green terminal is connected to the DC jack supply voltage.

Specifications:
INPUT CHARACTERISTICS:
Nominal Voltage:12-48V DC
Input Current:0-10A
Input data transfer:1/2/3/6 feet
Transmission rate:10/100Mbps
OUTPUT CHARACTERISTICS:
Input Voltage:12-48V DC
Output data transmission:1/2/3/6 feet
Output transmission rate:10/100Mbps
Output transmission power:4/5 positive 7/8 negative
Material:Fireproof material

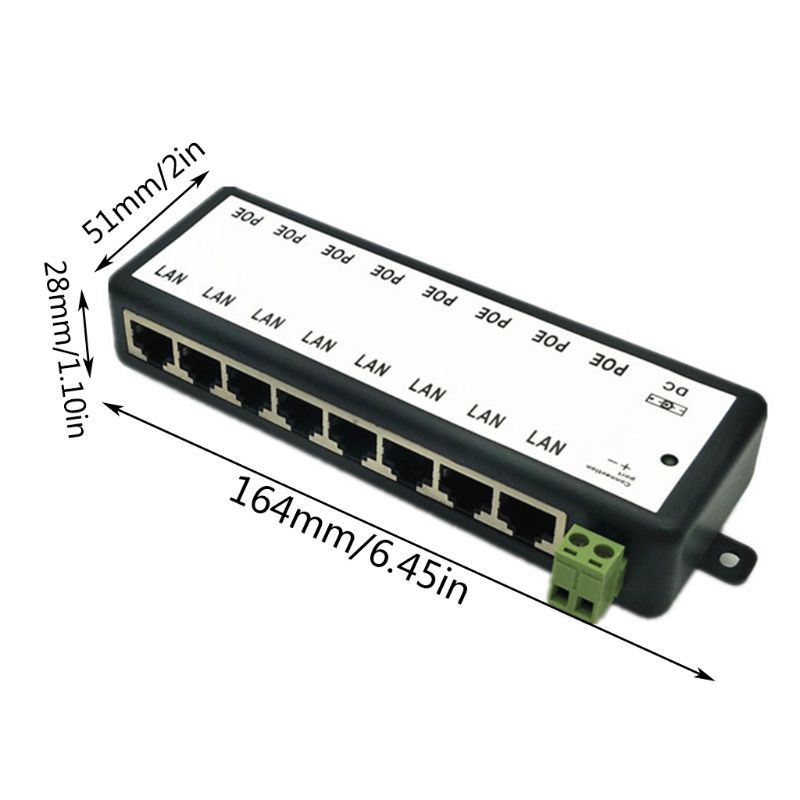

Size:16.4*6.2*2.8cm

Note:
-Transition: 1cm=10mm=0.39inch
-Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
-Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes: (No retail package)
1 X 8 Ports POE Splitter
